Opticks + JUNO : PMT Geometry + Optical Model Progress

Open source, https://bitbucket.org/simoncblyth/opticks

Many Opticks + JUNO Geometry Bugs fixed : NO KNOWN ISSUES REMAIN
Layr.h Multi-Layer TMM CPU/GPU header-only impl : VALIDATED
junoPMTOpticalModel standalone tests reveal issues, all from FastSim use:
- over complex PMT geometry and Geant4 step histories
- LIVE BUGS: polarization and propagation time within PMT
PLAN FIX : replace junoPMTOpticalModel FastSim with CustomG4OpBoundaryProcess:
- can fix above issues using a more standard approach
- simpler geometry, simpler simulation history, less code
- facilitates bringing PMT Optical Model to GPU within Opticks
OTHER WORK : more direct Opticks geometry translation (AIM: massive code reduction)
- substantial progress U4Material/U4Surface/U4Solid/stree/snode/snd

Simon C Blyth, IHEP, CAS — 6 Feb 2023

JUNO + Opticks : Timeline, see Refs for more detail

2022 Aug-Sep : Fixed geometry issues:

JUNO : PMT, PMTMask overlaps
Opticks : ellipsoid apex hole, thin cylinder, cone apex

2022 Oct-Nov : MultiFilmSimSvc -> GPU/CPU Layr.h

17 November 2022, JOC Meeting

Show PMT geometry issues and fixes already merged
Describe MultiFilmSimSvc -> GPU/CPU Layr.h
opticks_20221117_mask_debug_and_tmm.html

2022 Dec : Standalone few-PMT junoPMTOpticalModel test:

overcomplex : PMT geometry and Geant4 histories (inappropriate FastSim)
LIVE BUGS : incorrect PMT reflect/refract polarization, incorrect propagation speed in PMT

20 December 2022, AFG Sim Meeting

Demonstrated CustomG4OpBoundaryProcess can fix issues (using standalone few-PMT tests)
my impression: General agreement to proceed with fix, Guofu convinced
opticks_20221220_junoPMTOpticalModel_FastSim_issues_and_CustomG4OpBoundaryProcess_fix.html

2023 Jan : Start adapting above for use within junosw "monolith" by decoupling PMT data access

low dependency PMT data access : PMTSimParamData (MERGE STALLED: Jan 17->Feb 3)
OTHER WORK : more direct geometry translation : U4Material/U4Surface/U4Solid/stree/snode/snd

Details in above presentations + notes : https://bitbucket.org/simoncblyth/opticks/src/master/notes/progress.rst

JUNO + Opticks : Summary of Geometry Bug Fixes

OPTICKS PRIM ISSUES

nmskSolidMask : ellipsoid hole at "apex" issue

few per million "apex" rays find hole in ellipsoid
manifests as spurious "waist" intersects
FIXED : add zcut safety margin to CSG_ZSPHERE

nmskSolidMaskTail : very thin cylinder "lip" issues

requires uncoincidence shift of subtractee
BUT : even after uncoincide some spurious remain !
BUG 1 : mis-translated as CSG_DISC, not CSG_CYLINDER
BUG 2 : intersect precision loss for near-axial rays
FIXED : reimplement CSG_CYLINDER with less FLOPS

nmskSolidMaskVirtual : cone precision + near-apex issues

spurious sprinkle remains after uncoincide
BUG 1 : CSG_CONE precision loss in one quadratic root
BUG 2 : rays close to infinite cone apex yield spurious
FIXED : CSG_CONE robust roots + fix bad assumption

https://simoncblyth.bitbucket.io/env/presentation/opticks_20221117_mask_debug_and_tmm.html

`nmsk_nnvt_solids_STUVWXY_nnvt_virtualMask_Mask_overlap.png`

NNVT : ONE overlap issue visible, MaskTail impinges MaskVirtual

(using ct.sh : Opticks CSG on CPU)

`hmsk_hama_solids_STUVWXY_BodySolid_x_MaskTail.png`

HAMA : ONE overlap issue, BodySolid impinges MaskTail

(using ct.sh : Opticks CSG on CPU)

`hmsk_hama_solids_STUVWXY_zoom_impinge.png`

HAMA : BodySolid impinges MaskTail (mct.sh)

`hmsk_hama_solids_STUVWXY_after_bug_33_fix.png`

HAMA : after bug 33 fix

Layr.h : simple GPU/CPU header-only re-impl. of MultiFilmSimSvc

template<typename T> struct Layr
{
    T  d, pad   ; // d:thickness : zero means incoherent
#ifdef WITH_THRUST
    thrust::complex  n, st, ct, rs, rp, ts, tp ;
#else
    std::complex     n, st, ct, rs, rp, ts, tp ;
#endif
    Matx S, P ;
};

template <typename T, int N> struct Stack
{
    Layr<T> ll[N] ; // stack of N layers
    Layr<T> comp ;  // composite for the N layers
    ART_<T>  art ;  // results eg A,R,T

    Stack(T wl, T minus_cos_theta, const StackSpec<T>& ss);
};

https://github.com/simoncblyth/j/blob/main/Layr/Layr.h

simple impl : compiles with nvcc/gcc for GPU/CPU
using thrust::complex/std::complex
YES : struct, arrays, templates, enum, constexpr
NO : std::vector std::map std::string std::cout virtual meth.

Layr.h reproduces MultiFilmSimSvc ART results
- works on both CPU and GPU

ALT: multi-GB "ART" textures (Yuxiang Hu) TODO: compare

LayrTest.{sh,cc,h,cu,py} : AOI scan with float/double on CPU/GPU ...

 epsilon:Layr blyth$ ./LayrTest.sh ana
 CFLayrTest
  a :            EGet : scan__EGet__cpu_thr_double
  b :            EGet : scan__EGet__cpu_thr_float
  c :            EGet : scan__EGet__gpu_thr_double
  d :            EGet : scan__EGet__gpu_thr_float
  ...
  m :          R12860 : scan__R12860__cpu_pom_double
  n :          R12860 : scan__R12860__cpu_thr_double
  o :          R12860 : scan__R12860__cpu_thr_float
  p :          R12860 : scan__R12860__gpu_thr_double
  q :          R12860 : scan__R12860__gpu_thr_float

 In [1]: CF(m,q,0.05)
 Out[1]:
 CF(m,q,0.05) : scan__R12860__cpu_pom_double vs scan__R12860__gpu_thr_float
        lls :   0.000442 :   0.000442 :  -0.000414
      comps :   0.000341 :   0.000341 :  -6.17e-05
       arts :    6.2e-05 :    6.2e-05 :   -6.2e-05

 pmtcat:R12860 tt:5 lt:q : j/Layr/LayrTest scan__R12860__gpu_thr_float ni 900 wl 440
 +------------------------------+----------+----------+----------+----------+----------+
 |        R12860 arts\comps 0.05|     m:cpd|     n:ctd|     o:ctf|     p:gtd|     q:gtf|
 +==============================+==========+==========+==========+==========+==========+
 |                         m:cpd|         0| 0.0003325|  0.000301| 0.0003325| 0.0003407|
 +------------------------------+----------+----------+----------+----------+----------+   max difference of all param between scans
 |                         n:ctd| 6.064e-05|         0| 4.829e-05| 7.445e-14| 4.829e-05|
 +------------------------------+----------+----------+----------+----------+----------+
 |                         o:ctf| 5.454e-05| 6.101e-06|         0| 4.829e-05| 3.977e-05|
 +------------------------------+----------+----------+----------+----------+----------+
 |                         p:gtd| 6.064e-05| 1.321e-14| 6.101e-06|         0| 4.829e-05|
 +------------------------------+----------+----------+----------+----------+----------+
 |                         q:gtf| 6.199e-05| 1.523e-06| 7.451e-06| 1.523e-06|         0|
 +------------------------------+----------+----------+----------+----------+----------+

 In [1]: ARTPlot(m, 0.05)


S/P-Pol : perp./within plane

S/P Polarization : has huge effect on A,R,T in both directions : AOI > 90 is reversed stack


4 : A

Absorption : large S/P-polarization difference in both directions


4 : R

Only reflection at glancing incidence (90 deg) : large S/P-pol. difference for Vacuum->Pyrex


4 : T

Pyrex->Vacuum : Above critical angle : no transmission, only reflect or absorb

Standalone few PMT test of Geometry and Optical Model

j:PMTFastSim Standalone PMT geometry and Optical Model

https://github.com/simoncblyth/j/
j:PMTFastSim/junoPMTOpticalModel.cc
j:PMTFastSim/HamamatsuR12860PMTManager.cc
N=0/1 natural geometry switch

Optical only Geant4 simulation, with full step point recording

opticks:u4/tests/U4SimulateTest.sh

N=0/1 ./U4SimulateTest.sh

Geant4 Simtrace intersection : 2D geometry plotting

opticks:u4/tests/U4SimtraceTest.sh

N=0/1 ./U4SimtraceTest.sh

junoPMTOpticalModel Issues : All from using FastSim

simple 2 volume (Pyrex+Vacuum) geometry
standard G4OpBoundaryProcess reflect/refract/absorb/TIR
much less code : reuse of standard Geant4
easier Opticks on GPU : simpler, more standard
- no near-degenerate 1e-3 mm boundaries
- allows same geometry on CPU and GPU
- avoid history rewriting for comparisons

BUT : need to change very nasty Geant4 impl:

G4OpBoundaryProcess::PostStepDoIt: ugly monolith, rats nest of nested ifs

Unpleasant to get familiar with
Change palatable, using : CustomART.h
Keep change separated, detailed validation vital

Four volume PMT due to FastSim limitation
- Two volumes (Pyrex + Vacuum) would be natural

Fake volumes yield many fake intersects
- Pyrex/Pyrex + Vacuum/Vacuum same material fakes
- complicates Geant4 step point history
- complicates comparison with Opticks

Non-FastSim in PMT propagates at Pyrex (not Vacuum) speed
- FastSim->SlowSim transition misses speed fixup

reflected + refracted polarization doesnt follow Geant4
- should follow G4OpBoundaryProcess, depending on S/P

All issues stem from using FastSim (designed for regions)
- not good fit for 1 boundary (Pyrex/ARC/PHC/Vacuum)

Polarization on FresnelReflection/FresnelRefraction/TotalInternalReflection

_E2_t(make_float2( 2.f*n1c1/(n1c1+n2c2) ,
                   2.f*n1c1/(n2c1+n1c2) )),// (ts,tp)
_E2_r(make_float2( _E2_t.x - 1.f       ,
                   n2*_E2_t.y/n1 - 1.f  )),// (rs,rp)
A_transverse(cross(p.mom, orient*normal)),
E1_perp(dot(p.pol, A_transverse)),
E1(make_float2(E1_perp,sqrtf(1.f-E1_perp*E1_perp)))),
E2_t(_E2_t*E1),RR(normalize(E2_r)),
E2_r(_E2_r*E1),TT(normalize(E2_t)),
{
p.mom = reflect
      ?
         p.mom + 2.0f*c1*orient*normal
      :
         eta*(p.mom) + (eta*c1 - c2)*orient*normal
      ;
A_parallel = normalize(cross(p.mom, A_transverse));

p.pol =
        ( reflect ?
             ( tir ?
                   -p.pol + 2.f*EdotN*orient*normal
             :
                   RR.x*A_transverse + RR.y*A_parallel
             )
          :
             TT.x*A_transverse + TT.y*A_parallel
        )
      ;
}  // IMPL BASED ON + VALIDATED AGAINST GEANT4

Reflect/Refract : INCORRECT POLARIZATION

 void junoPMTOpticalModel::Reflect()
 {
     dir -= 2.*(dir*norm)*norm;
     pol -= 2.*(pol*norm)*norm;
 }
 void junoPMTOpticalModel::Refract()
 {
     dir = (real(_cos_theta4) -
            _cos_theta1*_n1/_n4)*norm + (_n1/_n4)*dir;
     pol = (pol-(pol*dir)*dir).unit();
 }

G4OpBoundaryProcess polarization from:

S/P Fresnel Coeff
S/P Directions : out/in plane of incidence

Opticks : sysrap/sboundary.h qudarap/qsim.h follows G4, ===>

opticks/src/master/sysrap/sboundary.h

Derive Fresnel from Maxwell Boundary Conditions

Fresnel Equations, Alexander I. Lvovsky: Encylopedia of Optical Engineering (fresnel-eoe.pdf)

Compare Reflected Polarization Impls for Brewster Angle Incidence

opticks/src/master/sysrap/tests/sboundary_test.sh : build, run, plot

sboundary_test/figs/sboundary_test/pvcap/AOI_BREWSTER_linear_polarization_by_reflection.png

sboundary_test/figs/sboundary_test/pvcap/AOI_BREWSTER_reflect_alt_pol.png

G4OpBoundaryProcess/qsim.h/sboundary.h : Only S-polarized survives

junoPMTOpticalModel::Reflect : very different

incident from left (-X), surface normal vertically upwards (+Z), intersection point in middle,
Colored lines represent polarization directions of 128 photons before and after Reflection
Reflected using sboundary.h (validated against G4OpBoundaryProcess)
Compared with sboundary.h:alt_pol that duplicates junoPMTOpticalModel::Reflect

Brewster (or polarizing) incident angle th1 : tan(th1) = n2/n1 ; th1 + th2 = pi/2

Compare Refracted Polarization Impls for Brewster Angle Incidence

opticks/src/master/sysrap/tests/sboundary_test.sh : build, run, plot

$sboundary_test/figs/sboundary_test/pvcap/AOI_BREWSTER_brewster_refract.png$ $sboundary_test/figs/sboundary_test/pvcap/AOI_BREWSTER_brewster_refract_alt_pol.png$

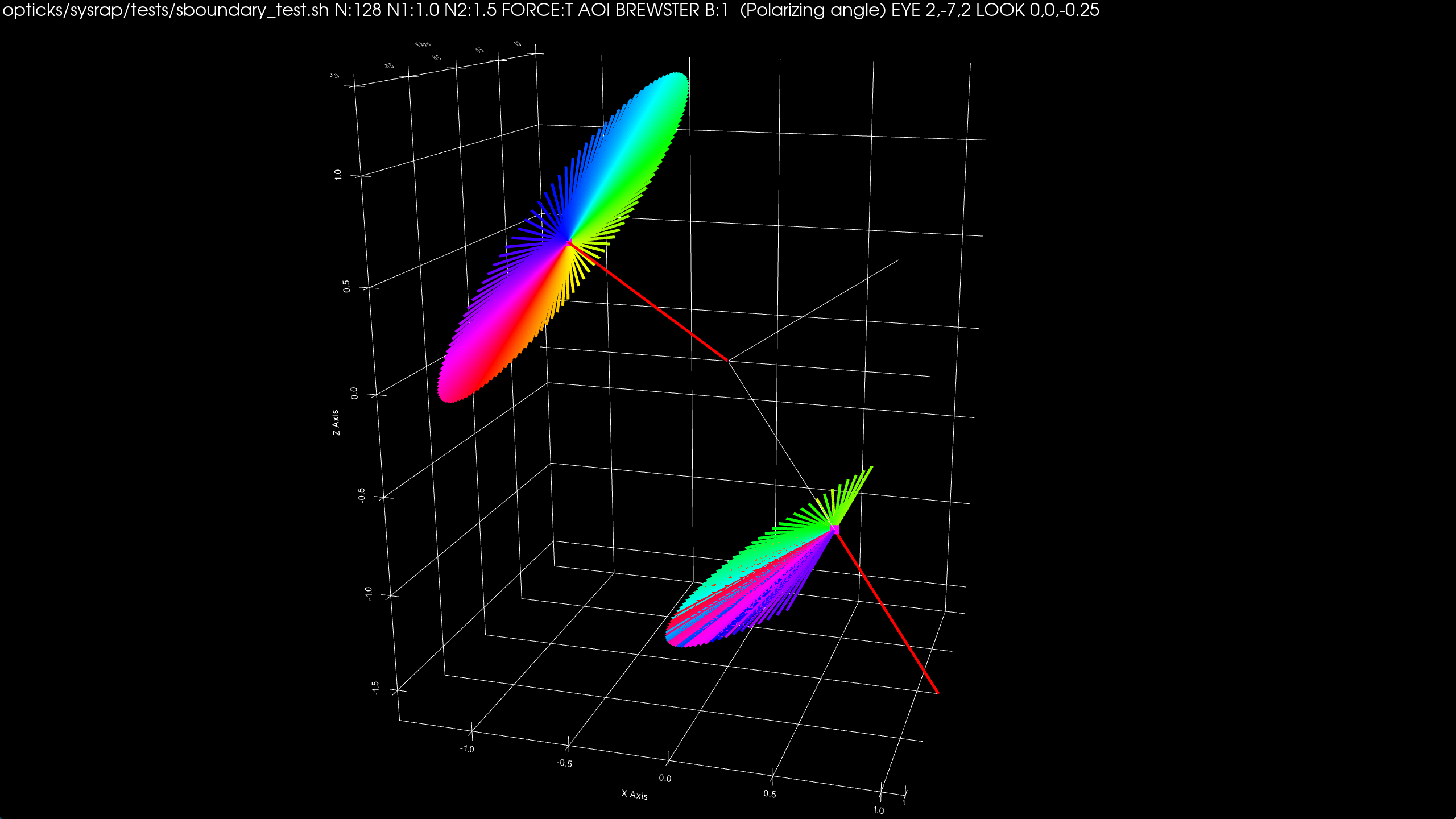

G4OpBoundaryProcess/qsim.h/sboundary.h : partial pol

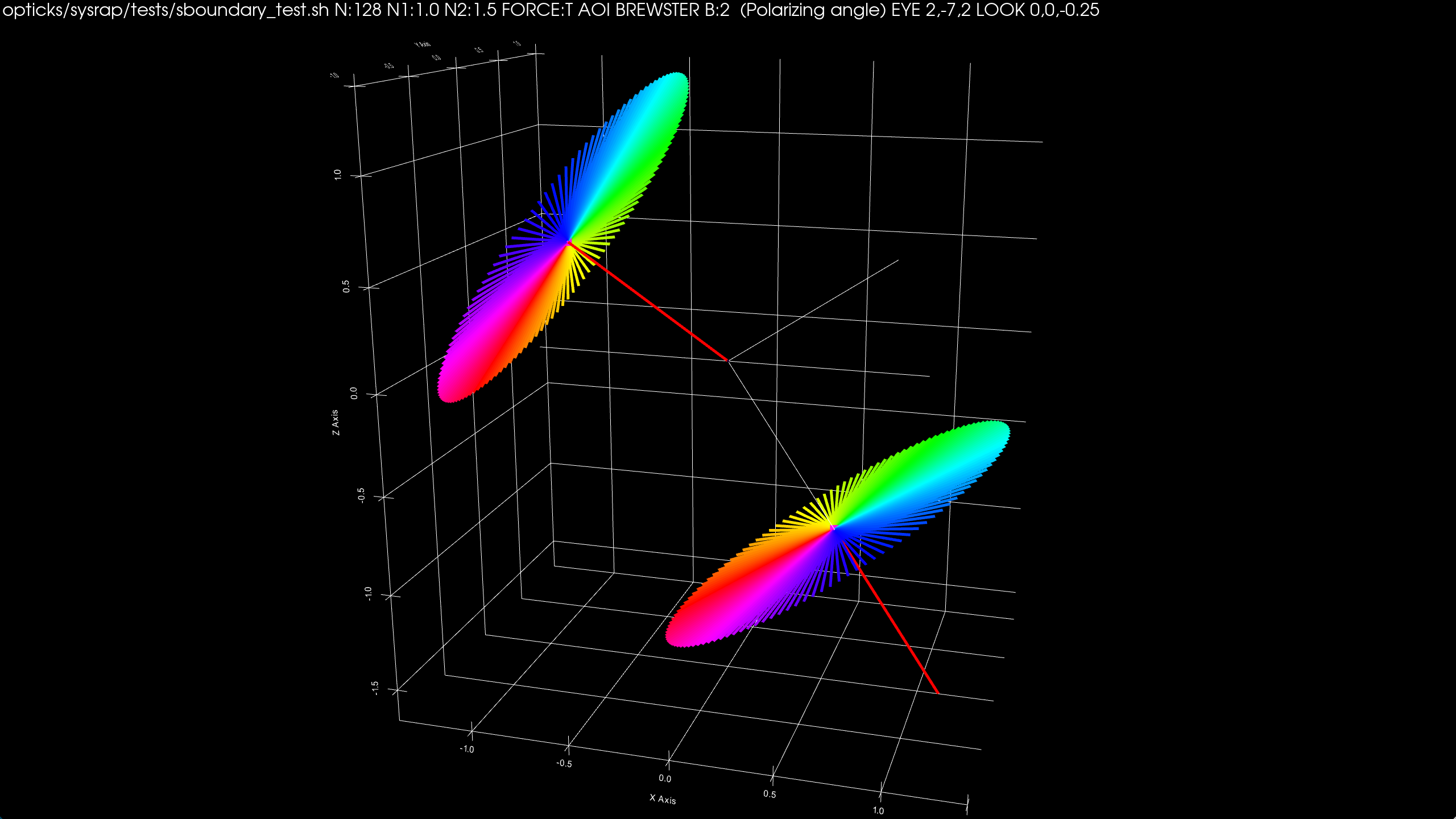

junoPMTOpticalModel::Refract : not partially pol

incident from left (-X), surface normal vertically upwards (+Z), intersection point in middle,
Colored lines represent polarization directions of 128 photons before and after Refraction
Refracted using sboundary.h (compared with alt_pol that duplicates junoPMTOpticalModel::Refract )


Natural 2-volume PMT (Pyrex + Vacuum) : NOT COMPATIBLE WITH FastSim


body hidden under inner1 inner2

body is FastSim envelope volume

CURRENT : Unnatural 4-volume PMT (Pyrex+Pyrex+Vacuum+Vacuum) => Half Fake

junoPMTOpticalModel FastSim : Fake Volumes -> Contorted ModelTrigger

  +---------------pmt-Pyrex----------------+
  |                                        |
  |                                        |
  |     +----body-Pyrex-(FSim-env)---+     |
  |     | +------------------------+ |     |
  |     | |                        | |     |
  |     | |                        | |     |
  |     | |        inner1-Vacuum   |-|     |
  |     | |                        |1e-3   |
  |     | |                        | |     |
  |     | +~~coincident~face~~~~~~~+ |     |
  |     | |                        | |     |
  |     | |                        | |     |
  |     | |        inner2-Vacuum   | |     |
  |     | |                        | |     |
  |     | |                        | |     |
  |     | +------------------------+ |     |
  |     +----------------------------+     |
  |                                        |
  |                                        |
  +----------------------------------------+

ModelTrigger : unnatural trig @ Vac/Vac bnd.
DoIt : shift to edge, for ART calc
only m_mirror_opsurf (inner2<->body) "active"

   80 G4bool junoPMTOpticalModel::ModelTrigger(const G4FastTrack &fastTrack)
   81 {   //  Contorted as "pre-trigger" on where next
   83     if(fastTrack.GetPrimaryTrack()->GetVolume() == _inner2_phys){
   84         return false;
   85     }
   ...
   89     pos     = fastTrack.GetPrimaryTrackLocalPosition();
   90     dir     = fastTrack.GetPrimaryTrackLocalDirection();
   94
   95     if(fastTrack.GetPrimaryTrack()->GetVolume() == _inner1_phys){
   96         whereAmI = kInVacuum;
   97     }else{
   98         whereAmI = kInGlass;
   99     }
  100
  101     if(whereAmI == kInGlass){
  102         dist1 = _inner1_solid->DistanceToIn(pos, dir);
  103         dist2 = _inner2_solid->DistanceToIn(pos, dir);
  104
  105         if(dist1 == kInfinity){
  106             return false;
  107         }else if(dist1>dist2){
  108             return false;
  109         }else{
  110             return true;
  111         }
  112     }else{
  113         dist1 = _inner1_solid->DistanceToOut(pos, dir);
  114         dist2 = _inner2_solid->DistanceToIn(pos, dir);
  115
  116         if(dist2 == kInfinity){
  117             return true;
  118         }
  119     }
  120     return false;
  121 }

junoPMTOpticalModelSimple : Natural Geometry -> Simple ModelTrigger

  +---------------pmt-Pyrex----------------+
  |                                        |
  |                                        |
  |                                        |
  |       +~inner~Vacuum~(FSim~env)+       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       +                        +       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       +------------------------+       |
  |                                        |
  |                                        |
  |                                        |
  +----------------------------------------+

ModelTrigger : z>0 : no unnatural trig
override mirror_opsurf (inner<->pmt) @ z > 0
simpler DoIt : no geom. queries, no shifting

 G4bool junoPMTOpticalModelSimple::ModelTrigger(
         const G4FastTrack &fastTrack)
 {
      //  Simple + Cheap due to natural geometry
     return fastTrack.GetPrimaryTrackLocalPosition().z() > 0. ;
 }

https://github.com/simoncblyth/j/blob/main/PMTFastSim/junoPMTOpticalModelSimple.cc

junoPMTOpticalModelSimple : Natural Geometry -> Simple DoIt

  +---------------pmt-Pyrex----------------+
  |                                        |
  |                                        |
  |                                        |
  |       +~inner~Vacuum~(FSim~env)+       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       +                        +       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       +------------------------+       |
  |                                        |
  |                                        |
  |                                        |
  +----------------------------------------+

ModelTrigger : z>0 : no unnatural trig
override mirror_opsurf (inner<->pmt) @ z > 0
simpler DoIt : no geom. queries, no shifting

 void junoPMTOpticalModelSimple::DoIt(const G4FastTrack& fastTrack,
       G4FastStep &fastStep)
 {
     G4double energy = fastTrack.GetPrimaryTrack()->GetKineticEnergy();
     wavelength_nm = twopi*hbarc/energy/nm ;

     position = fastTrack.GetPrimaryTrackLocalPosition();
     direction = fastTrack.GetPrimaryTrackLocalDirection();
     polarization = fastTrack.GetPrimaryTrackLocalPolarization();

     G4VSolid* envelope_solid = fastTrack.GetEnvelopeSolid();
     surface_normal = envelope_solid->SurfaceNormal(position);

     minus_cos_theta = direction*surface_normal ;
     whereAmI = minus_cos_theta < 0. ? kInGlass : kInVacuum ;

     StackSpec spec ;
     // ... skip : collect refractive indices, thickness into spec ...

     Stack stack(      wavelength_nm, minus_cos_theta, spec );
     Stack stackNormal(wavelength_nm, -1.            , spec );
     // ...
}

Simple : BUT NOT WORKABLE
Cannot stop: G4OpBoundaryProcess
- REAL REASON FOR THE FAKE VOLUMES
- Workaround limitations of Geant4 FastSim

Pivot to CustomG4OpBoundaryProcess For PMT Optical Model ?

  +---------------pmt-Pyrex----------------+
  |                                        |
  |                                        |
  |                                        |
  |       +~inner~Vacuum~~~~~~~~~~~+       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       !                        !       |
  |       +                        +       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       |                        |       |
  |       +------------------------+       |
  |                                        |
  |                                        |
  |                                        |
  +----------------------------------------+

OpSurfaceName[0] == '@'

local_z>0 : does MultiLayer ART calc
!(local_z>0) : standard mirror_opsurf

Cannot use natural geometry with FastSim
- SO: CustomG4OpBoundaryProcess

Custom Boundary Process : Advantages

standard Geant4 polarization, propagation
less code, simpler code
natural geometry, avoiding fakes
simpler Geant4 step history (no fakes)
same geometry on GPU+CPU, easier Opticks validation
half the geometry objects to model PMT (4->2)

Current FastSim POM	4 Solid, 4 LV, 4 PV
Custom Boundary POM	2 Solid, 2 LV, 2 PV

Disadvantages

maintain custom G4OpBoundaryProcess
updating Geant4 may require care (depending on changes)

Advantages far outweigh disadvantages

u4/CustomART.h : include into CustomG4OpBoundaryProcess.cc

inline char CustomART::maybe_doIt(
     const char* OpticalSurfaceName,
     const G4Track& aTrack, const G4Step& aStep )
{
    if( OpticalSurfaceName == nullptr ||
        OpticalSurfaceName[0] != '@') return 'N' ;

    const G4AffineTransform& transform =
      aTrack.GetTouchable()
      ->GetHistory()->GetTopTransform();

    G4ThreeVector localPoint =
      transform.TransformPoint(theGlobalPoint);

    if(localPoint.z() <= 0) return 'Z' ;

    return doIt(aTrack, aStep) ;
}

doIt TMM calc, runs only for:

OpticalSurfaceName[0]=='@' && zlocal > 0
-> Transmittance, Reflectivity, Efficiency
TMM calc using Layr.h multi-layer Stack

#include "IPMTAccessor.h"
#include "Layr.h"
#include "U4Touchable.h"

struct CustomART
{
    const IPMTAccessor* accessor ; // JPMT.h OR PMTAccessor.h

    G4double& theTransmittance ;   // doIt sets these
    G4double& theReflectivity ;
    G4double& theEfficiency ;

    const G4ThreeVector& theGlobalPoint ;
    const G4ThreeVector& OldMomentum ;
    const G4ThreeVector& OldPolarization ;
    const G4ThreeVector& theRecoveredNormal ;
    const G4double& thePhotonMomentum ;

    CustomART(
        const IPMTAccessor* accessor,
        G4double& theTransmittance,
        G4double& theReflectivity,
        G4double& theEfficiency,
        const G4ThreeVector& theGlobalPoint,
        const G4ThreeVector& OldMomentum,
        const G4ThreeVector& OldPolarization,
        const G4ThreeVector& theRecoveredNormal,
        const G4double& thePhotonMomentum
    );
    char maybe_doIt(const char* OpticalSurfaceName,
              const G4Track& aTrack, const G4Step& aStep );
    char doIt(const G4Track& aTrack, const G4Step& aStep );
};

opticks/src/master/u4/CustomART.h


TO  BT  BT  BT  BT  SR  SR  BT  BR  BR  BT  SR  SR  SR  BT  BR  BT  SR  BT  SA    Lots of fakes
00  01 [02] 03 [04] 05  06 [07] 08  09 [10] 11  12  13 [14] 15 [16] 17 [18] 19   (7/20 Fake)


TO  BT  BT  SR  SR  BR  BR  SR  SR  SR  BR  SR  BR  SR  SA
00  01  02  03  04  05  06  07  08  09  10  11  12  13  14       Simpler history, no fakes
00  01  03  05  06  08  09  11  12  13  15  17  19

Compare "big bouncer" position, time between N=0,1 (1)

u4t ; ./U4SimulateTest.sh cf

In [12]: np.c_[ar[:,0],np.arange(len(ar)),br[:,0]]
Out[12]:
array([[-113.   ,    0.   ,  200.   ,    0.   ,    0.   , -113.   ,    0.   ,  200.   ,    0.   ],
       [-113.   ,    0.   ,  170.163,    0.137,    1.   , -113.   ,    0.   ,  170.163,    0.137],
       [-112.83 ,    0.   ,  164.918,    0.164,    2.   , -112.83 ,    0.   ,  164.917,    0.164],
       [-112.83 ,    0.   ,  164.917,    0.164,    3.   , -156.577,    0.   , -148.846,    1.22 ],
       [-135.824,    0.   ,    0.   ,    1.012,    4.   ,  -95.   ,    0.   , -104.211,    1.474],
       [-156.577,    0.   , -148.846,    1.778,    5.   , -248.807,    0.   ,    7.28 ,    2.108],
       [ -95.   ,    0.   , -104.211,    2.166,    6.   ,   53.206,    0.   ,  180.727,    3.269],
       [-238.764,    0.   ,   -0.   ,    3.071,    7.   ,  245.605,    0.   ,  -35.443,    4.235],
       [-248.807,    0.   ,    7.28 ,    3.112,    8.   ,   95.   ,    0.   ,  -99.428,    4.781],
       [  53.205,    0.   ,  180.727,    4.274,    9.   ,  177.724,    0.   , -134.574,    5.08 ],
       [ 214.06 ,    0.   ,    0.   ,    5.507,   10.   ,  141.059,    0.   ,  152.451,    6.046],
       [ 245.605,    0.   ,  -35.443,    5.749,   11.   , -239.66 ,    0.   ,  -55.195,    7.492],
       [  95.   ,    0.   ,  -99.428,    6.583,   12.   ,  237.91 ,    0.   ,   54.597,    9.127],
       [ 177.724,    0.   , -134.574,    7.041,   13.   ,   50.   ,    0.   ,  -63.74 ,    9.867],
       [ 160.533,    0.   ,    0.   ,    7.732,   14.   ,   58.352,    0.   ,  -69.   ,    9.9  ],
       [ 141.059,    0.   ,  152.451,    8.245,   15.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [-138.46 ,    0.   ,    0.   ,    9.867,   16.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [-239.66 ,    0.   ,  -55.195,   10.455,   17.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [   0.427,    0.   ,    0.   ,   11.71 ,   18.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [ 237.91 ,    0.   ,   54.596,   12.523,   19.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [   0.   ,    0.   ,    0.   ,    0.   ,   20.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [   0.   ,    0.   ,    0.   ,    0.   ,   21.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [   0.   ,    0.   ,    0.   ,    0.   ,   22.   ,    0.   ,    0.   ,    0.   ,    0.   ],
       [   0.   ,    0.   ,    0.   ,    0.   ,   23.   ,    0.   ,    0.   ,    0.   ,    0.   ],

ar	a.record[PID]	N=0 current geom	degenerate and fake intersect points
bb	b.record[PID]	N=1 natural geom	less points, simpler history

Need point-to-point mapping to compare

Compare "big bouncer" position, time between N=0,1 (2)

 u4t ; ./U4SimulateTest.sh cf

 In [2]: b2a  ## point-to-point mapping to skip a fakes
 Out[2]: array([ 0,  1,  3,  5,  6,  8,  9, 11, 12, 13, 15, 17, 19])

 In [4]: abr = np.c_[ar[b2a,0],br[:len(b2a),0],ar[b2a,0]-br[:len(b2a),0]] ; abr
 Out[4]:
 array([[-113.   ,    0.   ,  200.   ,    0.   , -113.   ,    0.   ,  200.   ,    0.   ,    0.   ,    0.   ,    0.   ,    0.   ],
        [-113.   ,    0.   ,  170.163,    0.137, -113.   ,    0.   ,  170.163,    0.137,    0.   ,    0.   ,    0.   ,    0.   ],
        [-112.83 ,    0.   ,  164.917,    0.164, -112.83 ,    0.   ,  164.917,    0.164,    0.   ,    0.   ,    0.   ,   -0.   ],
        [-156.577,    0.   , -148.846,    1.778, -156.577,    0.   , -148.846,    1.22 ,   -0.   ,    0.   ,    0.   ,    0.558],
        [ -95.   ,    0.   , -104.211,    2.166,  -95.   ,    0.   , -104.211,    1.474,    0.   ,    0.   ,    0.   ,    0.692],
        [-248.807,    0.   ,    7.28 ,    3.112, -248.807,    0.   ,    7.28 ,    2.108,    0.   ,    0.   ,   -0.   ,    1.004],
        [  53.205,    0.   ,  180.727,    4.274,   53.206,    0.   ,  180.727,    3.269,   -0.   ,    0.   ,    0.   ,    1.004],
        [ 245.605,    0.   ,  -35.443,    5.749,  245.605,    0.   ,  -35.443,    4.235,    0.   ,    0.   ,    0.   ,    1.514],
        [  95.   ,    0.   ,  -99.428,    6.583,   95.   ,    0.   ,  -99.428,    4.781,    0.   ,    0.   ,    0.   ,    1.802],
        [ 177.724,    0.   , -134.574,    7.041,  177.724,    0.   , -134.574,    5.08 ,    0.   ,    0.   ,    0.   ,    1.96 ],
        [ 141.059,    0.   ,  152.451,    8.245,  141.059,    0.   ,  152.451,    6.046,   -0.   ,    0.   ,    0.   ,    2.199],
        [-239.66 ,    0.   ,  -55.195,   10.455, -239.66 ,    0.   ,  -55.195,    7.492,    0.   ,    0.   ,    0.   ,    2.963],
        [ 237.91 ,    0.   ,   54.596,   12.523,  237.91 ,    0.   ,   54.597,    9.127,    0.   ,    0.   ,   -0.   ,    3.397]], dtype=float32)

Positions match closely, some times are way off

Compare "big bouncer" position, time, dist, speed between N=0,1

rvtime_ = lambda r:np.diff(r[:,0,3])
rvstep_ = lambda r:np.diff(r[:,0,:3],axis=0 )
rvdist_ = lambda r:np.sqrt(np.sum(rvstep_(r)*rvstep_(r),axis=1))
rvspeed_ = lambda r:rvdist_(r)/rvtime_(r)

In [14]: np.c_[rvtime_(ar[b2a]), rvtime_(br[:len(b2a)]),
               rvdist_(ar[b2a]), rvdist_(br[:len(b2a)]),
              rvspeed_(ar[b2a]),rvspeed_(br[:len(b2a)])]

Out[14]:
array([[  0.137,   0.137,  29.837,  29.837, 218.038, 218.038],  ## Water
       [  0.027,   0.027,   5.249,   5.249, 196.216, 196.215],  ## Pyrex
       [  1.615,   1.057, 316.798, 316.798, 196.215, 299.792],  ## Vacuum
       [  0.388,   0.254,  76.053,  76.053, 196.215, 299.792],
       [  0.946,   0.634, 189.965, 189.965, 200.744, 299.792],  ## comb. of Vacuum and Pyrex speeds, split at Fake
       [  1.162,   1.162, 348.275, 348.275, 299.792, 299.792],
       [  1.475,   0.965, 289.392, 289.392, 196.215, 299.792],
       [  0.834,   0.546, 163.634, 163.634, 196.215, 299.792],
       [  0.458,   0.3  ,  89.881,  89.881, 196.215, 299.792],
       [  1.204,   0.965, 289.357, 289.357, 240.315, 299.792],  ## comb. of Vacuum and Pyrex speeds, split at Fake
       [  2.21 ,   1.447, 433.663, 433.663, 196.215, 299.792],
       [  2.068,   1.635, 490.027, 490.027, 236.919, 299.792]], dtype=float32)

N=0	Pyrex speed within PMT Vacuum	FastSim->SlowSim transitions miss speed setup ?
N=1	Always Vacuum speed in Vacuum	All standard Geant4 with customized G4OpBoundaryProcess



Low dependency access to PMT data (26x faster)

CODING BEST PRACTICE
- less deps -> more useful code
test separate from the "monolith"
- development cycle < 1 s (vs minutes)
serialization with NP.hh,NPFold.h
- https://github.com/simoncblyth/np/
- 0-deps (hdr-only) -> PMT data anywhere

QE scan over 100 energy points, all PMTs

get_pmtid_qe( pmtid, en );

IPMTSimParamSvc	7.70 s
PMTSimParamData	0.30 s
IPMTSimParamSvc/PMTSimParamData	26.10

exactly same results, 26x faster

junosw/-/merge_requests/126 MERGED AFTER ~3 WEEKS

junosw/-/issues/66

junosw/-/tree/blyth-66-low-dependency-PMT-data-access

PMTSimParamSvc and PMTParamSvc: => too many deps for CustomG4OpBoundaryProcess

hdrs for collecting data are irrelevant to access
-> separate data struct from Svc
- header-only impl : PMTSimParamData PMTParamData
- _PMTSimParamData : serialization save/load
reference data struct from Svc
- minimal changes to Svc, API
- consistency guaranteed
- no change with diff src : file, DB, Frontier
speedup not the motivation, BUT 26x faster by:
- calc qe_scale ONCE, not for every photon
- large pmtid std::map -> std::vector

U4Tree.h/stree.h : Direct Geometry Translation

Geant4 -> U4Tree.h/stree.h -> CSG

Minimal intermediate stree.h model

stree.h : n-ary tree of snode volumes
scsg.hh : n-ary trees of snd constituent solids
(much less code)

U4Tree: G4VPhysicalVolume -> stree/snode
U4Solid: G4VSolid -> scsg/snd
U4Material: G4Material -> NPFold/NP
U4Surface: G4LogicalSurface -> NPFold/NP

stree/snode/scsg/snd -> CSGFoundry/CSGSolid/CSGPrim/CSGNode

Next Steps : Custom Boundary + Natural Geometry Branch

junosw : Natural PMT Geometry Branch

almost all standalone tested already, need to bring into junosw monolith
need switch : FastSim/standard-Sim, natural geometry, custom boundary

Primary	Support
CustomG4OpBoundaryProcess CustomART.h Layr.h	PMTSimParamData (merged in MR 126) PMTAccessor/IPMTAccessor (j/Layr) HamamatsuR12860PMTManager NNVTMCPPMTManager

Opticks : Custom boundary equivalent

PMTSimParamData PMTAccessor -> GPU
natural geometry => easier to validate (no fakes)
standard propagation + polarization => easier (already implemented qudarap/qsim.h )
